PLASTIC SHREDDER
FREEDOM – FLEXIBILITY – FUNCTIONALITY
Plastic Shredder Hybrid
Introducing the most innovative autonomous plastic shredder. A modular dual-part system with an intelligent interactive display allows you to tailor material settings for 10x speed performance. As a result, the GP20 is a total powerhouse – both powerful and precise.
Modular Design
An all-new modular design that allows you to personalize your set-up to focus on what you really need. The functionality of the GP20 Shredder Hybrid gives you the freedom and flexibility to fit it into any project within any industry.
Intelligent Settings
As the user, you’re able to tailor the GP20’s settings specifically to your needs. Several sensors work together to automate many previously manual operations, including:
- Autonomous troubleshooting
‒Automatic reverse mode - Smart Motor Load
- Smart Material Input
‒ Controls feeding belt dosing - Temperature control – prevents material melting
Customizable Components
Next to the modular design and automated settings, individual components can be modified to best suit your needs. With the GP20, there are no limitations/limits. Whether you choose to modify your shredder blades or customize your filter screen size, you’ll always get the best outcome from any polymer.
Enhanced Safety
Following industry standards and safety protocols, the hopper design prevents any direct access to harmful components. Our CE certified GP20 will give you the best experience while keeping you safe.
Easy To Clean
Thoroughness is key in the design to make sure you can remove every single particle. The components that collect these tiny particles are easily accessible and removable to clean out any debris and prevent any contamination to your regrinds. Cut down on time spent cleaning and use it on shredding.
More Flexibility
More Flexibility
More Flexibility
More Flexibility
Compact Size Without Any Compromise
With temperatures up to 450°C, our filament makers can process a wide range of materials
Swappable and Nitride hardened for industrial grade lifespan
0,5 – 3mm Ø with automated control system
Heating System
Multi-zone design with up to 4 separate zones
Materials Mixing
Optionally equipped with material Mixing section
Regular firmware updates. Real-time extrusion data analysis.
Control Panel

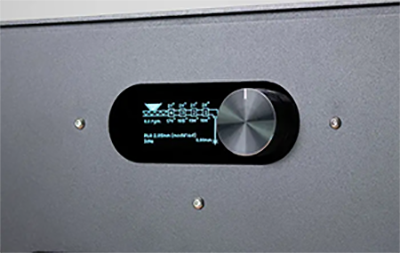

Display Interface
- Easily accessible settings
- Convenient standard material pre-sets
- Customizable material profiles for perfect results
Connectivity
- Simple USB connectivity with your computer/laptop
- Regular firmware updates and instant access to new features
Hopper
- Optical sensor to check material level
- Removable tube; multiple sizes supported
- Built-in safety grille
Extruder
- 4 heating zones, reaching temperatures up to 450°C
- Nitride hardened steel extruder screw
- Swappable extruder design
- Optional mixing section (Composer Series)
- Replaceable extruder nozzle

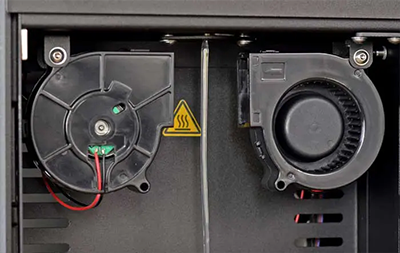

Cooling System
- Dual fan system for even air distribution
- Adjustable fan angles for optimal air flow
- Cutomizable, material-specific fan speeds
Sensor + Puller
Optical sensor
- Accurate diameter measurement between 0.5mm and 3.0mm; 43 micron precision
- One nozzle for all filament diameters
- Ideal sensor placement to ensure filament roundness

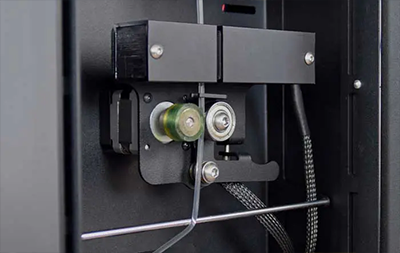

Puller system
- Automatic speed adjustment for accurate diameter control
- Changeable puller wheels to suit material temperature variations

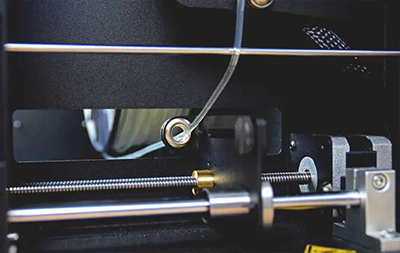

Filament Positioner
- Set your own spool sizes, and with auto spooling let the system to the work. The filament maker will neatly position itself to get a nice looking spool that wont tangle.
Features
- Adjustable positioner, with a max spool width of: 120mm
- Automatic spooling to user-defined size
- Retractable arm for neat, even winding of all spool sizes

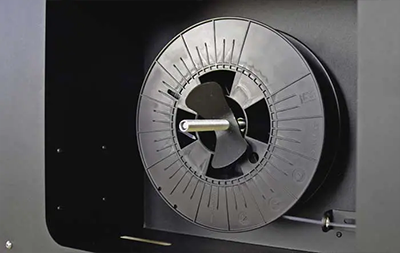

Spool Winder
- Fit spools with a max Diameter: 240mm, And a max width of: 120mm
- User-friendly slipper clutch for spool tension adjustments
- Swappable spool mount for quick changing between spools

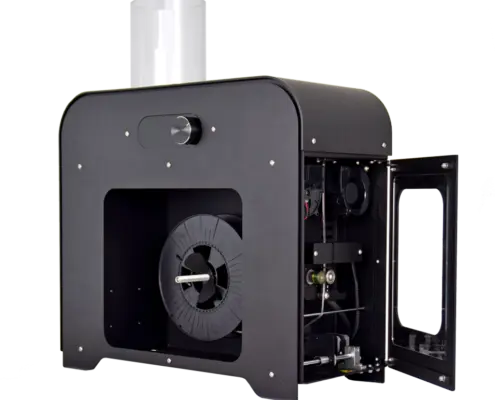

Filament Maker
GP20 Plastic Shredder Hybrid
Recycling Made Simple
GP20 Series
Introducing the most innovative autonomous plastic shredder. A modular dual-part system with an intelligent interactive display allows you to tailor material settings for 10x speed performance. As a result, the GP20 is a total powerhouse – both powerful and precise.Airid Polymer Dryer
